CNC Capabilities
-
MILL IT.
It all begins with an idea. Maybe you want to launch a business.
-
TURN IT.
It all begins with an idea. Maybe you want to launch a business.
-
EDM IT.
It all begins with an idea. Maybe you want to launch a business.
-
CMM IT.
It all begins with an idea. Maybe you want to launch a business.
CNC MILLING.
-
3 CNC Brother Speedio S700X1 Machining Center (31" x 15")
2 CNC Mori-Seiki NV5100 Machining Center (41” x 20”) (w/High pressure. (1000 psi) coolant)
1 CNC DMG Mori NVX 7000 (60" X 31") (w/High press. (1000 psi) thru spindle coolant / glass scales)
-
(1) CNC Okuma MA600H II - {2022}
(2) CNC Haas EC-1600
(3) CNC Mori NH5000DCG
(2) CNC Mori NHX 4000
(2) CNC Mori NHX 5000
-
Efficiency in milling high precision parts through are 5 axis department.
(1) CNC Doosan DNM200/5AX
(2) CNC Kitamura MyTrunnion 4G
-
Single Minute Exchange of Die, Quick Change-Over, and Set-up Reduction are terms referring to a set of lean manufacturing processes that enable fast, predictable job set-ups with minimal waste through process mapping and workplace organization.
-
Total Productive Maintenance is a lean manufacturing practice in which routine machinery maintenance is performed proactively on a near-continuous basis by the machine operator. This ensures greater equipment uptime and productive capabilities.
Urban Manufacturing is committed to CNC Milling quality products with high standards.
Routinely holding tolerances up to 0.0005"
Vertical machining tolerances up to 60" X 26"
Vertical lathe tolerances up to 13" diameter
Horizontal machining tolerances up to 64" X 50" X 40"
Up to 5-axis capabilities
Machining alloys, resins, thermoset plastic and exotic minerals
Cellular Manufacturing.
Alloys, resins, thermoset plastic and exotic minerals
We understand that your material specifications are critical design elements. Our ability to work with these materials is critical to the success of your part or component. Urban Manufacturing routinely holds tolerances up to 0.0005” and tighter.
Our manufacturing engineers and journeymen machinists have experience working with hard-to-machine materials, and we live to solve challenging manufacturing issues. We machine production-volume components made from materials with machinability ratings of 20% and below.
Consistency is everything. We control material identity throughout the production process using our Innov X-System’s alloy X-ray analyzer.
CNC Turning.
-
16 (6” Chucks) | 4 (8” Chucks)
3 (10” Chucks) | 3 (12” Chucks)
1 (15” Chucks) |
2 CNC Kia SKT-250 Chuckers (10” Chuck)
1 Excel SLT-1240 CNC Lathe Chucker (12” Chuck)
1 Doosan Puma 300 CNC Lathe Chucker (12” Chuck)
1 Doosan Puma 400 CNC Lathe Chucker (15” Chuck)
-
12 ranging from 1-5/8” to 1-1/4” Bars
1 CNC Mori-Seiki SL-154 w/Barfeed (6” Chuck (with live tooling) (1-3/4”Bar)
1 CNC Mori-Seiki ZL-153 w/Barfeed (6” Chuck) (1-5/8” Bar)
1 Doosan Puma 2600Y II (3-1/8” Bar) (with live tooling)
-
6 ranging from 5/8” to 1-1/4” Bars
1 CNC Citizen L20 Swiss Screw Machine (with live tooling) (1”dia. capacity)
-
A lean manufacturing workspace design system with a goal to eliminate waste and maximize efficiency through the organization of production teams into semi-autonomous multi-skilled teams, or work cells.
Urban Manufacturing is capable of Turning the parts you require.
Routinely holding tolerances up to 0.0005"
Ability to work with bars up to 2 5/8" diameter by 12' long
Machining alloys, resins, thermoset plastic and exotic materials
Live tooling capabilities using the Swiss Screw Machines up to 12-axis
SMED, QCO, or Set-Up Reduction.
Single Minute Exchange of Die, Quick Change-Over, and Set-up Reduction are terms referring to a set of lean manufacturing processes that enable fast, predictable job set-ups with minimal waste through process mapping and workplace organization.

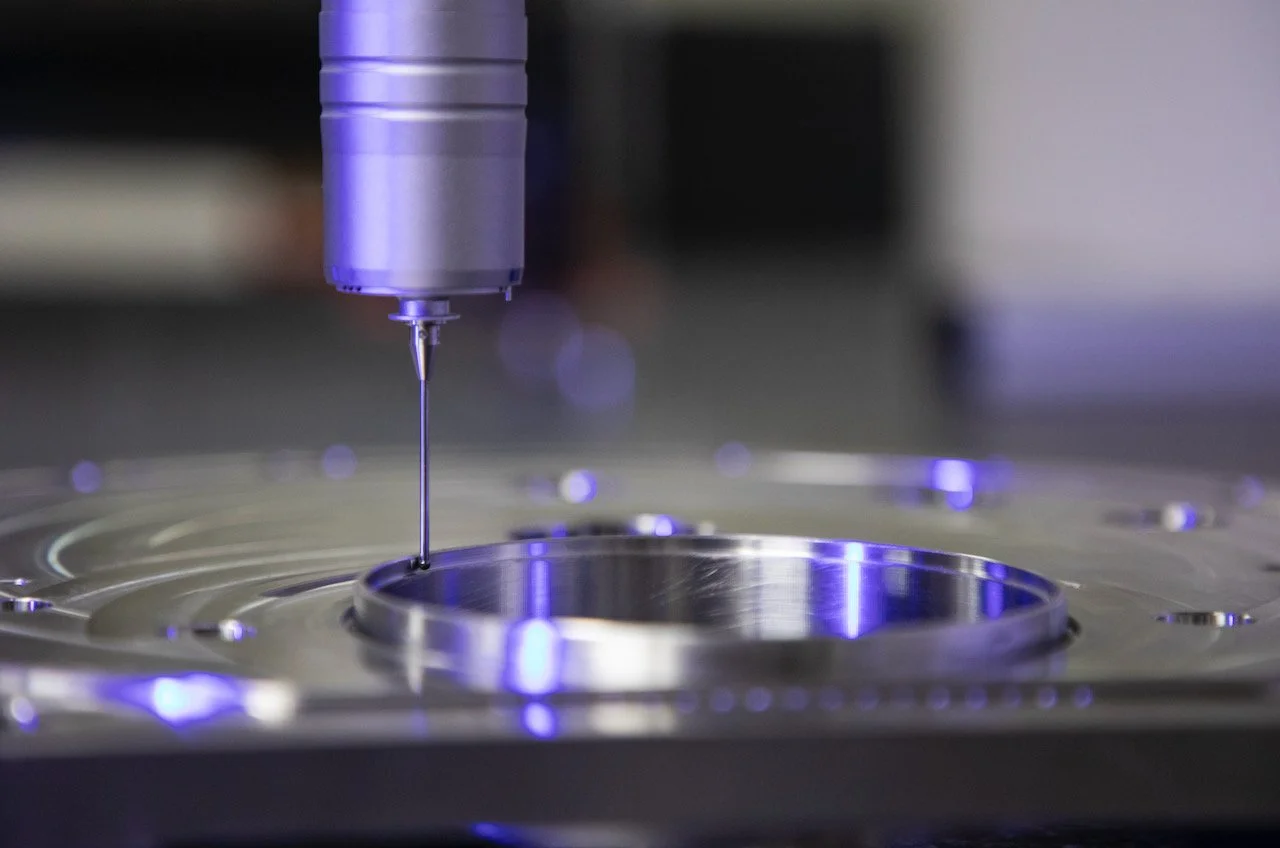

ZEISS CMM CONTROL
-
6 FULL TIME LAB TECHS. Our lab is fitted with state-of-the-art measuring equipment capable of measuring at a sub-micron level including five CMMs, three vision systems, and a XRF for verification of raw materials. Records are traceable throughout the entire process.
-
1 Zeiss Contura 1000 Scanning CMM (45” x 40” x 28”) (CNC Controlled)
3 Zeiss Contura G2 Scanning CMM (80” x 45” x 28”) (CNC Controlled)
1 Zeiss OI-322 Optical CMM (12” x 8”)
-
1 Mitutoyo BH706 Coordinate Measuring System (28" x 24")
1 Innov-X-Systems DS-2000 XRF Alloy Analyzer (X-Ray used to rapidly determine alloy composition and grades)
1 Numerex Coordinate Measuring System (13" x 18")
1 30" Baty Gage Master CNC Optical Comparator
1 14" Gage Master Optical Comparator with DRO
1 Federal Digital Surface Finish Tester
2 Mitutoyo Digital Surface Finish Tester
State-of-the-Art Quality Lab.
-
ISO 9001 : 2015 Compliant
With our Parent company’s ISO 9001:2015 Registration at the core of Oliver, our quality and engineering teams take a proactive approach to ensure that our processes will provide consistent products to you – time after time. Our Goal is -0- DPPM.
-
MACHINE-2-CMM PRODUCTION
Experienced in close tolerance production where atmosphere can influence part dimensions.
-
Continuous Improvement
Urban Manufacturing has implemented lean manufacturing techniques, quality-assurance programs, and process-control systems to guarantee satisfaction. As our customers improve their systems through advancing manufacturing techniques, so do we.
-
PPAP.
The Production Parts Approval Process is an automotive supply chain process to demonstrate that engineering designs and specifications are properly understood, and the manufacturing process will consistently meet customers’ requirements.
-
5S.
A methodology for organizing and managing workspace and work flow in order to eliminate waste, maximize process efficiency and improve productivity.
-
Q.A.
Our staff focuses on preventative and in-process quality assurance, so customers do not need to perform incoming assessment on the parts we produce.
WIRE EDM .
-
4 Mitsubishi FA20S High Precision Wire EDM (20”W x 14”D x 11” H)
Capable of Wire EDM’ing the parts you require.
Urban Manufacturing routinely holds tolerances up to 0.0005" and can hold tighter tolerances as needed by the client using Wire EDM capabilities.
Work envelope up to 19"x13"x11"
Materials include all metals and alloys, including TZM and NIOBIUM
Cellular Manufacturing
A lean manufacturing workspace design system with a goal to eliminate waste and maximize efficiency through the organization of production teams into semi-autonomous multi-skilled teams, or work cells.
